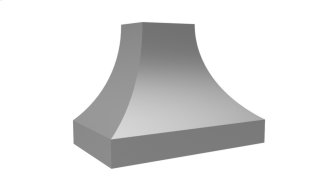

Vent-A-Hood JDH236/C1BL
36" Wall Mounted Designer Series Range Hood
- Add to compare
- Add to wishlist
Details & Features
Concave with thick lip styling. Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish [painted, stainless steel, real brass, real copper, or hammered copper]. All Vent-A-Hood Magic Lung products are suitable for use in damp locations [outdoor applications such as a covered patio] when installed in a GFCI protected branch circuit. Recommended mounting height is 30" above the cooking surface.
Tech Specs
| WIDTH : | 36" |
| DEPTH : | 24" |
| HEIGHT : | 30" |
| CFM : | 600 |
| SONES : | 6.5 |
| Amps : | 4.0 |
| Num. Lights : | 2 |
| ELECTRICAL/MECHANICAL SPECIFICATIONS FOR BLOWER UNIT | |
| Model | B200 Dual |
| Volts | 115 |
| Amps+ | 4.0 |
| Hz | 60 |
| RPM | 1550 |
| CFM SP@0.0" | 600 |
| Equiv. CFM$ | 900 |
| CFM SP@0.1" | 531 |
| CFM SP@0.2" | 480 |
| CFM SP@0.3" | 430 |
| Min. Round Duct Size | 8" (50 sq. in.) |
| Sones# | 6.5 |
